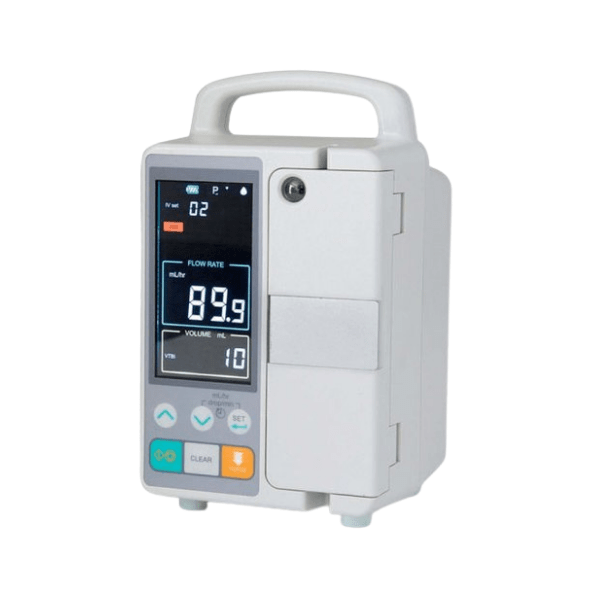

Infusion Pump YK – IP3

Functionsnction automatic infusion;Audible alarm;AC and DC dual-use Audible alarm Sensitive alarm reminder to ensure injection safety in real time KVO KVO status Auto progress KVO mode. Keep the patient’s veins open Pressure monitoring Overvoltage protection. The blocking pressure can be detected precisely and sensitively by a pressure sensor installed in the push handle. Data storage Data storage function, convenient for medical staff to review historical alarm information Quick release function;power on self test Infusion modes: ml/hour, drops/minute and time mode Forgotten operation alarm function;Flow Accuracy Calibration With cumulative display and cumulative reset function memory function;Drug library function;Switch between Chinese and English；Real-time time display and setting；Adjustable key tone settings Adjustable backlight display brightness；Alarm volum
Weight: 1.5 kg, Dimensions: 22 × 22 × 24 cm
Infusion speed: 1ml/h – 1200ml/h can be incremented or decreased by 0.1ml/h, Infusion volume accuracy error: ±5% (ordinary infusion set), Infusion volume preset: 0.1ml – 9999.9ml can be decreased in increments of 0.1ml, blocking pressure: High: 110kpa Medium: 80kpa Bottom: 40kpa, KVO: 1ml/h – 5ml/h can be decreased in increments of 1ml/h, voltage: Not more than 35VA, Dimensions: 90*205*151, weight: 1.5kg, Safety classification: Class I, type BF general equipment with internal power supply, waterproof level: IPX1, Built-in battery working time: d.c11.1V not less than 2000mA,not less than 12 hours, Power supply voltage: AC 100~240V AC, power frequency: 50/60Hz battery input 9.5V-12.6V, working environment: Ambient temperature: 10~30℃ Relative humidity: 30%~75% Atmospheric pressure: 860hPa–1060hPa, storage environment: The packaged infusion pump should not exceed 93% (no condensation), and no corrosive gas will pass through a good room, and the indoor temperature conditions are: -20℃~+55℃
3 inch monochrome LCD display

• automatic infusion
• Audible alarm
• AC and DC dual-use
• KVO status Auto progress KVO mode
• Pressure monitoring Overvoltage protection
• Data storage function
• Quick release function
• power on self test
• Infusion modes: ml/hour, drops/minute and time mode
• Forgotten operation alarm function
• Flow Accuracy Calibration
• cumulative display and cumulative reset function
• memory function
• Drug library function
• Switch between Chinese and English
• Real-time time display and setting
• Adjustable key tone settings
• Adjustable backlight display brightness
• Alarm volume
