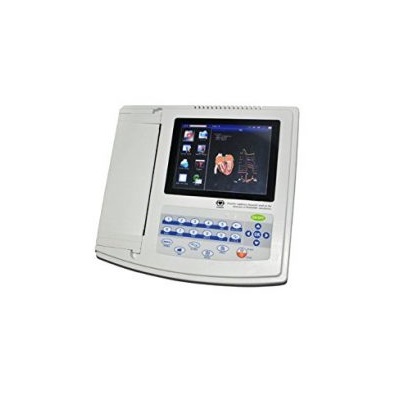

Contec ECG 1200G Electrocardiograph

Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal. Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing. Multiply printing modes and formats, including auto 12×1, auto 6×2+1, auto 6×2+1_H, auto 6×2, auto 6x2_H, auto 3×4+1, auto 3×4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements. Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s. With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden. Built-in memory stores up to 1000 cases, convenient for case review and statistic. Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report. In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.
Standard: -A lead cable -A limb electrode -A chest electrode -A thermal recording paper -A power cord -An earth wire -A user manual Optional: -ECG-Sync software+USB cable -ECG electrode -Bag -Conductive paste -USB cable -3G card -Wi-Fi card -Remote Operation Guide
• Screen size: 8 inches
• Leads: 12 leads
• Input way: Floating and defibrillation protection
• Lead: Standard 12 leads(model:BIP0057)
• Patient leak current: <10µA • Input impedance: ≥50MΩ • Frequency response: 0.05Hz~150Hz(-3dB) • Time constant: Time constant>3.2s
• CMRR: >60dB, >100dB( Adding filter)
• EMG interference filter: 35Hz(-3dB)
• Recording way: Thermal printing system
• Specification of recording paper: 210mm(W)*20m(L) high-speed thermal paper
• Paper speed: Auto record: 25mm/s, 50mm/s, error:±5% Rhythm record: 25mm/s, 50mm/s, error:±5% Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
• Sensitivity selections: 2.5,5,10,20,40mm/mV, error:±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
• Auto record: Record setup according to auto record format and mode, automatically changing leads, measuring and analysing.
• Rhythm record: Record setup according to rhythm record format and mode, automatically measuring and analysing.
• Manual record: Record setup according to manual record format, manually changing leads.
• Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1)
• Product safety type: Class I CF applied part; there is defibrillation and pacing protection circuit in it.
• Enduring polarization voltage: ±300mV
• Noise level: ≤15µVp-p
• Fuse specification: 2 pcs φ5*20mm AC time lag; T1.6A/250V(Power supply 220V)
• Size: 340mm(L)*320mm(W)*85mm(H)
• Net Weight: 3.2Kg

• Sync collection for 12-lead ECG
• Digital signal processing technology
• High-quality ECG waveform via power frequency filter, baseline filter and EMG filter
• Display of 3/6/12-lead ECG
• Multiply printing modes and formats
• Auto-analysis and auto-diagnosis for routine ECG parameters
• Built-in memory stores up to 1000 cases
• Multi-language interface and report
• Up to 10-hour standby time
