Handheld Color Analyzer Testing

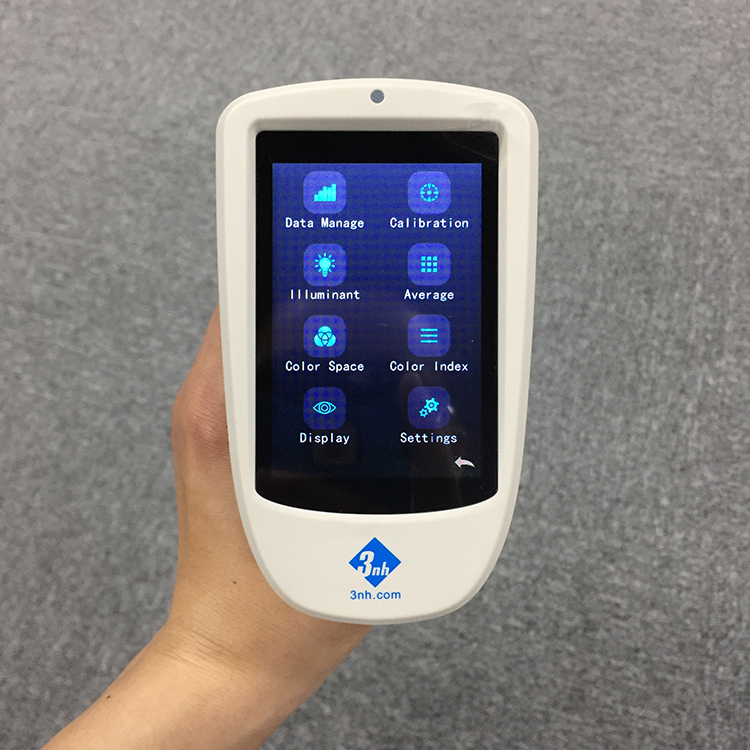

Handheld Color Analyzer Testing TS7600 handheld spectrophotometer is a high-end precise colour measurement instrument for surface colour measurement and management, It is widely suitable all kinds of industries such as: plastics and metals, paint and coating, furniture and wood, ink, printing and packaging, pharmaceuticals, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry. the Spectrophotometer TS7600 is a top-of-the-line measurement instrument designed to precisely evaluate the color and appearance of opaque and fluorescent samples.
Lead Time: 2-3 Weeks
• Product Category: Optical Electronic Digital Color Testing Equipment
• Product Name: Handheld Color Measurement Spectrophotometer
• Optical Geometry: d/8°
• Measuring Apertures: Choose One Apertrue from: ∅10mm/∅8mm or ∅5mm/∅4mm
• Color Spaces: CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Muncell(C/2)
• Color Difference Formulas: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
• Repeatability Error: ΔE*ab≤0.04
• Inter-instrument Error: ΔE*ab≤0.2
• Other Colorimetric Index: WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Staining Fastness, Color Fastness, Color Strength, Opacity, 8-degree Glossiness
• Information Displayed: Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Simulation, Color Offset/Deviation Direction
• SCI/SCE: SCI+SCE (SPIN+SPEX)
• Viewing Angle: 2° & 10°
• Illuminating Lamps: Combined Full Spectrum LED Lamps
• Lamps Life-span: 5 Years, more than 3 Million times of measurements.
• Integrating Sphere Size: ∅40mm
• Wavelength Range: 400nm – 700nm
• Wavelength Pitch: 10nm
• Semiband Width: 10nm
• Reflectance Range: 0∼200%
• Illuminants: D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
• Sensor: Silicon Photodiode Array (Dual Row 40 Groups )
• Spectroscope: Flat Grating
• Measurement Time: 1.5s (About 5s for both SCI and SCE)
• Data Storage Capacity: 1000 pcs of Standards, 20000 pcs of Samples. (Once piece of data includes both SCI and SCE)
• Data Transmission Port: USB
• PC Terminal Software: SQCX (for free)
• Display Screen: 3.5-inch TFT Capacitance Screen-touch Display
• Language Built-in: English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify)
• Built-in Battery: 6000 times measurements in 8 hours.
• Working Environment: Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
• Storage Environment: Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
• Standard Accessories: White and Black Calibration Cavity, Φ4mm or Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide, Protective Cover, Wrist Strap.
• Optional Accessories: Mini Thermal Printer, Powder Test Box
• Weight: 600g
• Dimension: 129*76*217mm

• Handheld Color Analyser Testing
• TS7600 handheld spectrophotometer
• High-end precise colour measurement instrument
• Surface colour measurement and management
• Widely suitable for various industries
• Top-of-the-line measurement instrument
• Precisely evaluate the color and appearance of opaque and fluorescent samples
