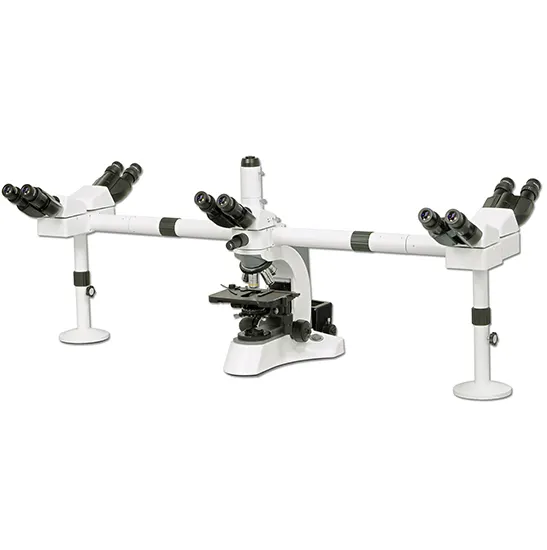

Microscope Multi-Head BS-2080MH10

Microscope Multi-Head BS-2080MH10

**Lead Time: 3-4 Weeks**

* Microscope Multi-Head BS-2080MH10

**Introduction**
BS-2080MH Series Multi-Head Microscopes are high level microscopes equipped with multi-head for more persons to observe specimen at the same time. – With the features of infinite optical system, effective high brightness illumination, – LED pointer and images coherence – they are widely used in clinical medicine, scientific research and teaching demonstration areas

**Application**
They are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. – They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.
**Specification**
**– Brand: BestScope**
-Multi-Head Microscope BS-2080MH10

Item | Specification | BS-2080 MH4/4A | BS-2080 MH6 | BS-2080 MH10
—|—|—|—|—
Optical System | Infinite Optical System | ● | ● | ●
Viewing Head | Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 1PC | 1PC
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 2PCS | 4PCS
Eyepiece | Extra Wide Field Eyepiece EW10×/ 20mm | 4PCS | 6PCS | 10PCS
Nosepiece | Backward Quintuple Nosepiece | ● | ● | ●
Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | ● | ● | ●
Infinite Plan Achromatic Objective 20×, 60× | ○ | ○ | ○
Condenser | Swing Condenser N.A.0.9/ 0.25 | ● | ● | ●
Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm | ● | ● | ●
Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | ● | ● | ●
Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W | ● | ● | ●
5W LED Illumination | ○ | ○ | ○
Pointer | Green LED Pointer, Brightness Adjustable | ● | ● | ●
Dual Color LED Pointer, Brightness Adjustable | ○ | ○ | ○
Photo Adapter | Used to connect Nikon or Canon DSLR camera to the microscope | ○ | ○ | ○
Video Adapter | C-Mount 1× | ○ | ○ | ○
C-Mount 0.5× | ○ | ○ | ○
• Weight: 9 kg
• Dimensions: 30 × 25 × 25 cm
Infinite Optical System, Seidentopf Trinocular Head, Extra Wide Field Eyepiece EW10×/ 20mm, Backward Quintuple Nosepiece, Infinite Plan Achromatic Objective, Swing Condenser N.A.0.9/ 0.25, Coaxial Coarse & Fine Focus Adjustment, Double Layers Mechanical Stage, Kohler Illumination, Green LED Pointer

• Infinite Optical System
• Seidentopf Trinocular Head
• Extra Wide Field Eyepiece EW10×/ 20mm
• Backward Quintuple Nosepiece
• Infinite Plan Achromatic Objective
• Swing Condenser N.A.0.9/ 0.25
• Coaxial Coarse & Fine Focus Adjustment
• Double Layers Mechanical Stage
• Kohler Illumination
• Green LED Pointer
